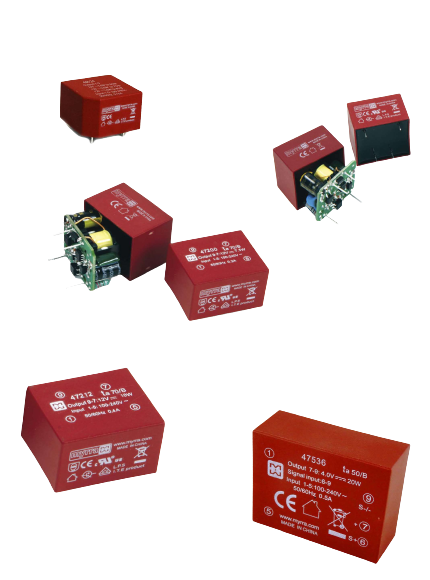

1W TO 60W : STANDARD ENCAPSULATED PCB RANGE
MYRRA encapsulated Switched Mode Power Supplies is based on Flyback topology.
They constitute an interesting alternative to the traditional supply in the most common applications of power from 1W to 60W.
ENERGY SAVING due to high efficiency and low standby power.
Application for our Power Supplies:
- Alternative to the linear transformers in all AC/DC applications of power up to 60W
- Alternative to DC/DC converters for application in D.C. current (Telecom supplies, electric substations etc.)
- Industrial, domestic and consumer electronics applications
- Stand by devices and others DC or AC auxiliary supplies
With the same footprint as an EI30 transformer, they will replace:
- 50 Hz Transformer
- Fuse
- Bridge Rectifier
- Filtering Capacitor
Regulated types will also replace linear regulator and heatsink
MAIN FEATURES
- Wide input voltage range
- Increased power: 3x compared to standard EE20-EI30-EI38 transformers
- Better energetic efficiency: 70% typical compared to 40% for the conventional supply
- Very low Standby Power consumption: meets requirements of Energy Star or EC Code of Conduct
- Same footprint as EE20-EI30-EI38-EI48 transformer: (1W~10W)
- Upgrade your application without redesign of PCB
SAFETY STANDARDS
Meets all requirements of:
- IEC/EN62368
- EN 60335
- EN 61558-2-16
- EN 61558-1
- UL 60950-1
- CSA 22.2 N°60950-1 UL 94-V0
EMC STANDARDS
Conducted and radiated emissions conform to
- EN 55014-1
- EN 55032 class B
Immunity conform to
- EN 55014-2
- EN 61000-4-x
Our Standard Range
Our Standard Range can also be customised
