1W TO 60W : STANDARD ENCAPSULATED PCB RANGE

MYRRA encapsulated Switched Mode Power Supplies is based on Flyback topology.

They constitute an interesting alternative to the traditional supply in the most common applications of power from 1W to 60W.

ENERGY SAVING due to high efficiency and low standby power.

Main Features

Wide Input Voltage Range

3.3V up to 24V

More powerful

3x compared to standard EE20-EI30-EI38 transformers

Better energetic efficiency

70% typical compared to 40% for the conventional supply

Low standby power consumption

meets requirements of Energy Star or EC Code of Conduct

Same footprint

as EE20-EI30-EI38-EI48 transformer

Upgrade your application without redesign of PCB

Application for our Power Supplies:

  • Alternative to the linear transformers in all AC/DC applications of power up to 60W
  • Alternative to DC/DC converters for application in D.C. current (Telecom supplies, electric substations etc.)
  • Industrial, domestic and consumer electronics applications
  • Stand by devices and others DC or AC auxiliary supplies

With the same footprint as an EI30 transformer, they will replace:

50 Hz Transformer

Fuse

Bridge Rectifier

Filtering capacitor

Regulated types will also replace linear regulator and heatsink
SAFETY STANDARDS

Meets all requirements of:

  • IEC/EN62368
  • EN 60335
  • EN 61558-2-16
  • EN 61558-1
  • UL 60950-1
  • CSA 22.2 N°60950-1 UL 94-V0

EMC STANDARDS

Conducted and radiated emissions conform to

  • EN 55014-1
  • EN 55032 class B







IMMUNITY CONFORM TO

  • EN 55014-2
  • EN 61000-4-x

65W LED Drivers

Main Features

Small Compact Size

3 in 1 Dimming

1V to 10V or 10 VPWM signal or resistance

High Efficiency

> 90%

Cost-Saving

Applications :

  • LED Flood Lighting
  • LED Decorative Lighting
  • LED Architectural Lighting
  • LED Street Lighting
  • LED Bay Lighting

SAFETY STANDARDS

Meets all requirements of:

  • IEC/EN61347-1
  • IEC/EN61347-2-13
  • UL8750 CLASS 2
  • CSA C22.2 No.250.13-12
  • CE
  • UKCA,IP65

EMC STANDARDS

Conducted and radiated emissions conform to

  • EN55015
  • FCC Part15
  • EN/IEC61000-3-2 Class C
  • EN61000-3-3EN 55014-1





IMMUNITY CONFORMS TO

  • EN61000-4-2
  • EN/IEC61000-4-3
  • EN61000-4-4
  • EN61000-4-5
    EN61000-4-6
  • EN61000-4-8
  • EN610004-11

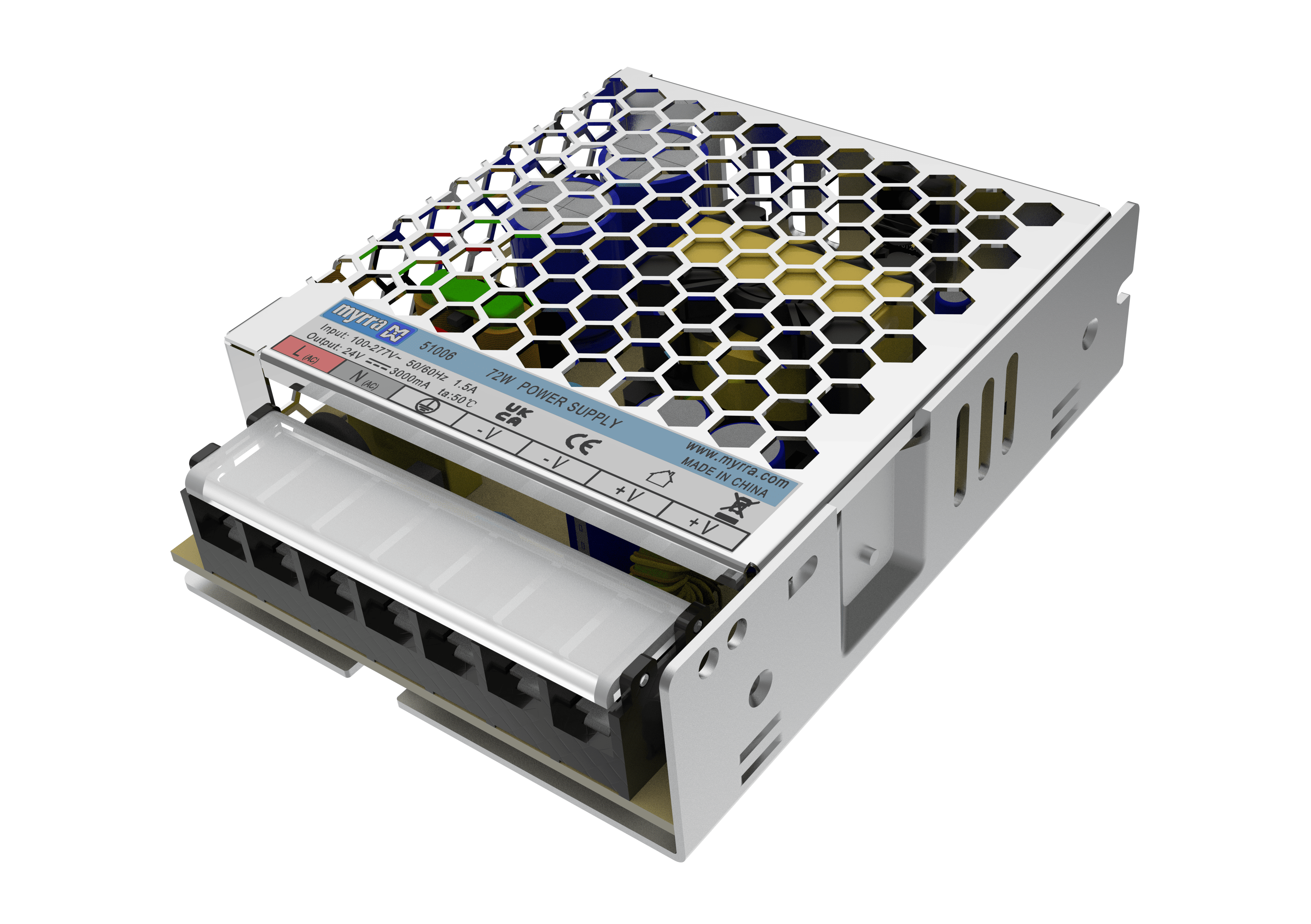

AC/DC Industrial Power Supply

Main Features

Small Compact Size

Very Low Standby Power Consumption

≤ 0.3W

High Efficiency

> 90%

Cost-Saving

Applications :

  • Industrial Automation Machinery
  • Industrial Control System
  • Mechanical & Electrical Equipments
  • Electrical Instrument Equipment
  • Household Appliances

SAFETY STANDARDS

Meets all requirements of:

  • IEC/EN61558-2-16
  • IEC/EN60335-1
  • IEC/EN62368-1
  • UL62368-1
  • CSA C22.2NO.62368-1-14
  • CE
  • UKCA

EMC STANDARDS

Conducted and radiated emissions conform to

  • EN55032
  • FCC Part 15
  • CLASS B
  • EN/IEC61000-3-2 CLASS C
  • EN61000-3-3





IMMUNITY CONFORMS TO

  • Immunity Conforms To EN61000-4-2
  • IEC/EN61000-4-3
  • EN61000-4-4
  • EN61000-4-5
  • EN61000-4-6
  • EN61000-4-8
  • EN61000-4-11
